Wire mesh trays, accessories, supports and underground protection.
At Aeon Tech Solutions, cable management is one of our core focus areas. We specialise in wire mesh (basket) cable trays — a modern alternative to conventional perforated and ladder-type trays — along with the accessories, supports, and underground cable protection systems needed to complete a full cable routing solution.
Our systems are used across data centres, power and process plants, commercial buildings, railways, and infrastructure projects, wherever reliable, low-maintenance cable containment is critical.
Cables will find their own route unless you give them one.
Every added circuit that goes in without containment costs something later: nobody can trace a fault, nothing can be added without disturbing what is already there, heat has nowhere to go, and the whole bundle becomes a fire and rodent risk.
Containment is cheap at the design stage and expensive to retrofit. This is the work we are here to do.
Conventional trays create the problems. Mesh solves them by design.
Conventional cable trays (perforated sheet and ladder type) require heavy support structures, on-site welding and cutting, and are prone to sharp edges that damage cables and injure installers.
Up to 10x faster installation — no welding, cutting, or grinding required on site.
Lighter than conventional trays, reducing the load on support structures and cable racks.
Only 3 accessories (connector, screw, and connecting tab) are needed to build almost any configuration — straight runs, bends, risers, and branches.
No sharp edges — safer for cables and for installation crews.
Excellent ventilation — open mesh design keeps cables cool and allows easy inspection and cleaning.
Free-form routing — the mesh can be shaped on site with a simple cutting tool, so no pre-engineered bends, tees, or elbows are needed.
No hidden spaces for pests or rodents, unlike enclosed trays — reducing the risk of short circuits and fire caused by rodent damage.
Per welded cross junction on the grades we supply — a light structure that still carries a full cable load between supports.

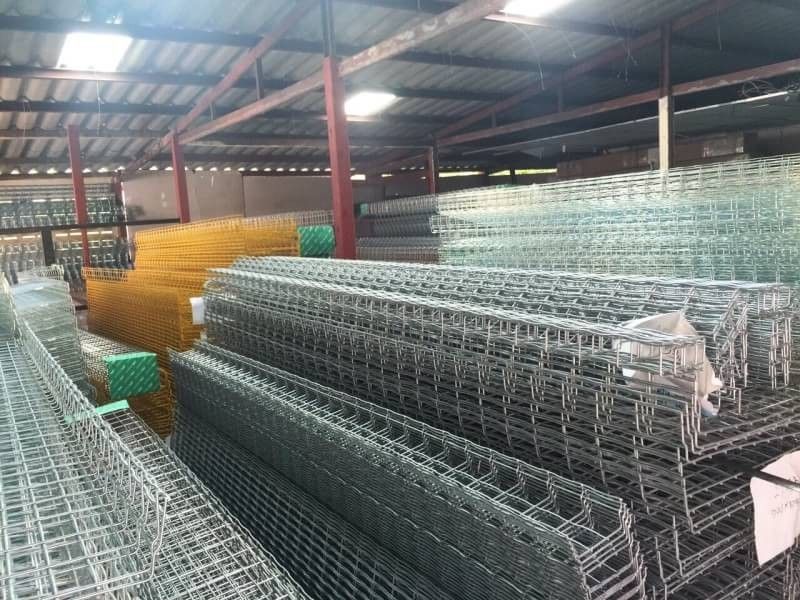

Trays nest into each other, so a full site quantity ships and stores in a fraction of the space a sheet tray needs.
Significant cost savings across labour, logistics, storage, and accessories compared to conventional tray systems.
The tray, and the three parts that build any run.
Seven widths, two collar heights.
Trays are supplied in standard 3 metre lengths. Width is selected from the cable schedule and the fill you want to leave for future circuits; collar height is selected from the number of layers and the support span.
Pay for the protection level your site actually needs.
Cable trays are exposed to a wide range of environments — indoor, outdoor, marine, chemical, and offshore — each with different corrosion risks.
We help customers select the right grade based on site conditions, so trays deliver a long service life without over-specifying cost.

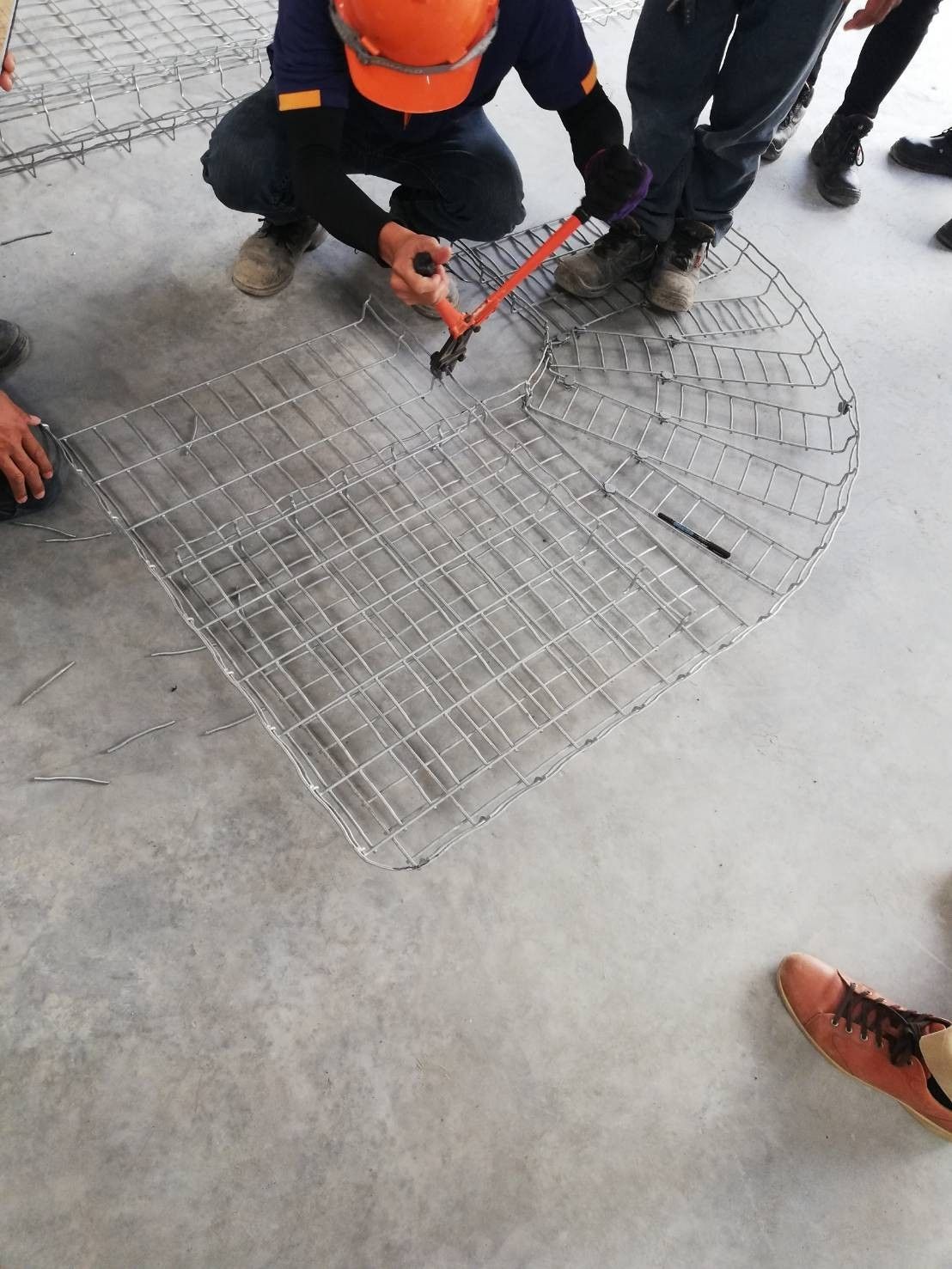

Formed on site, not pre-engineered.

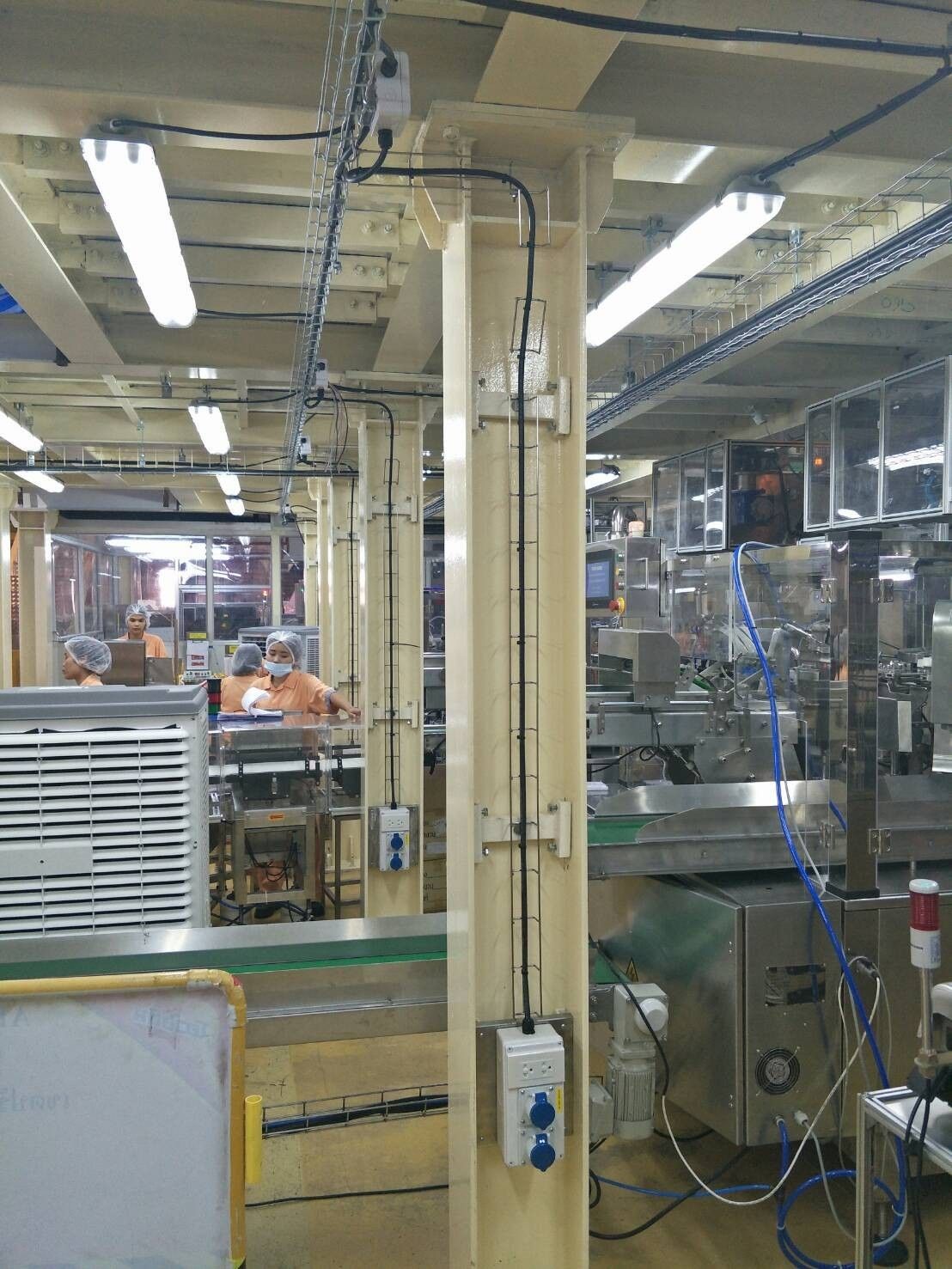

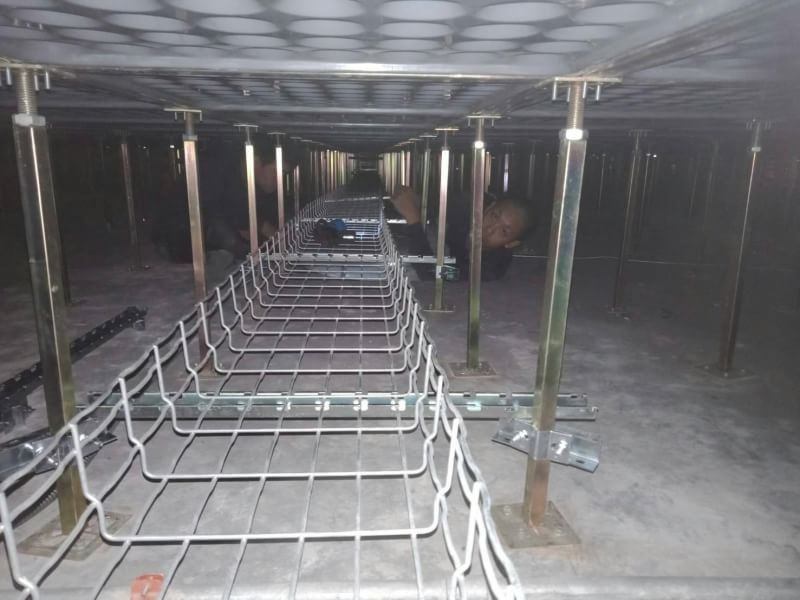

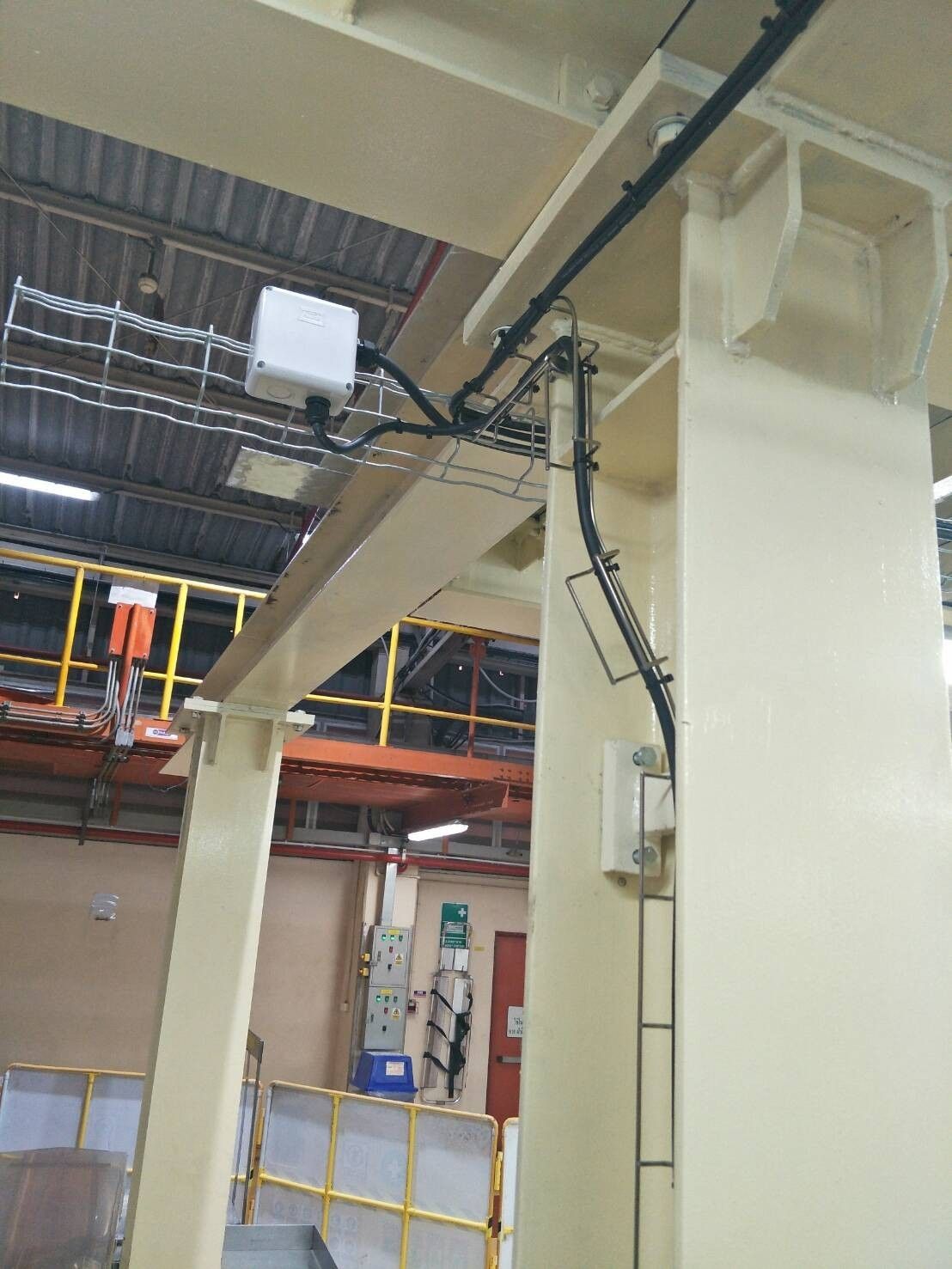

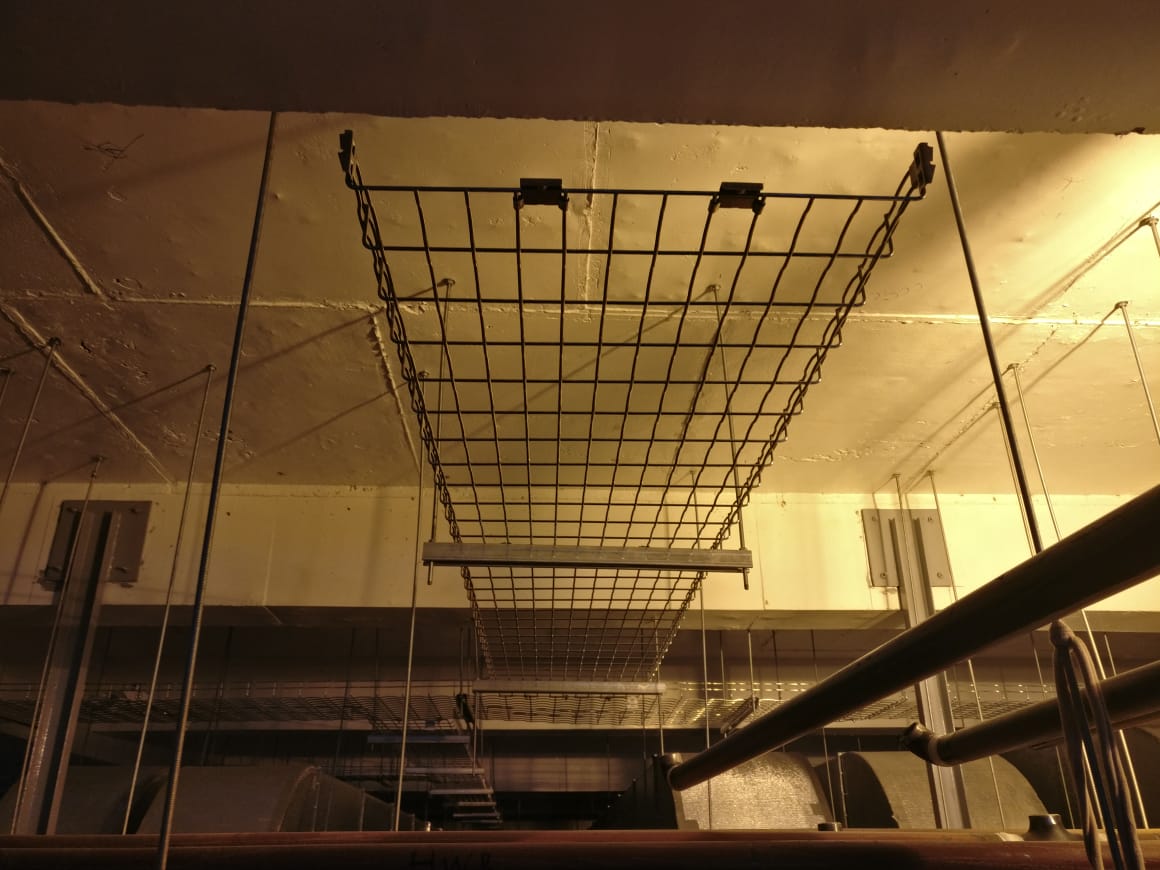

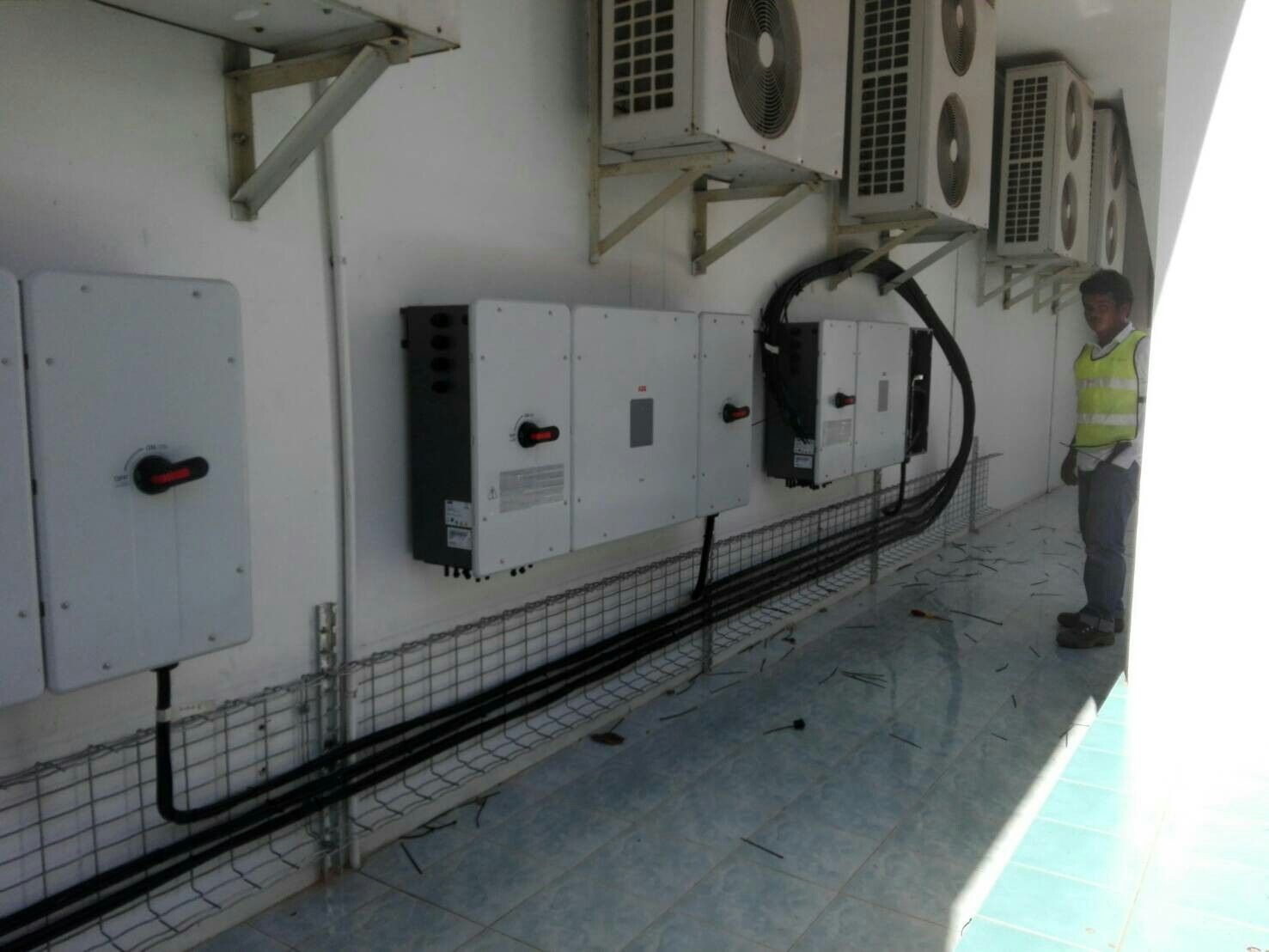

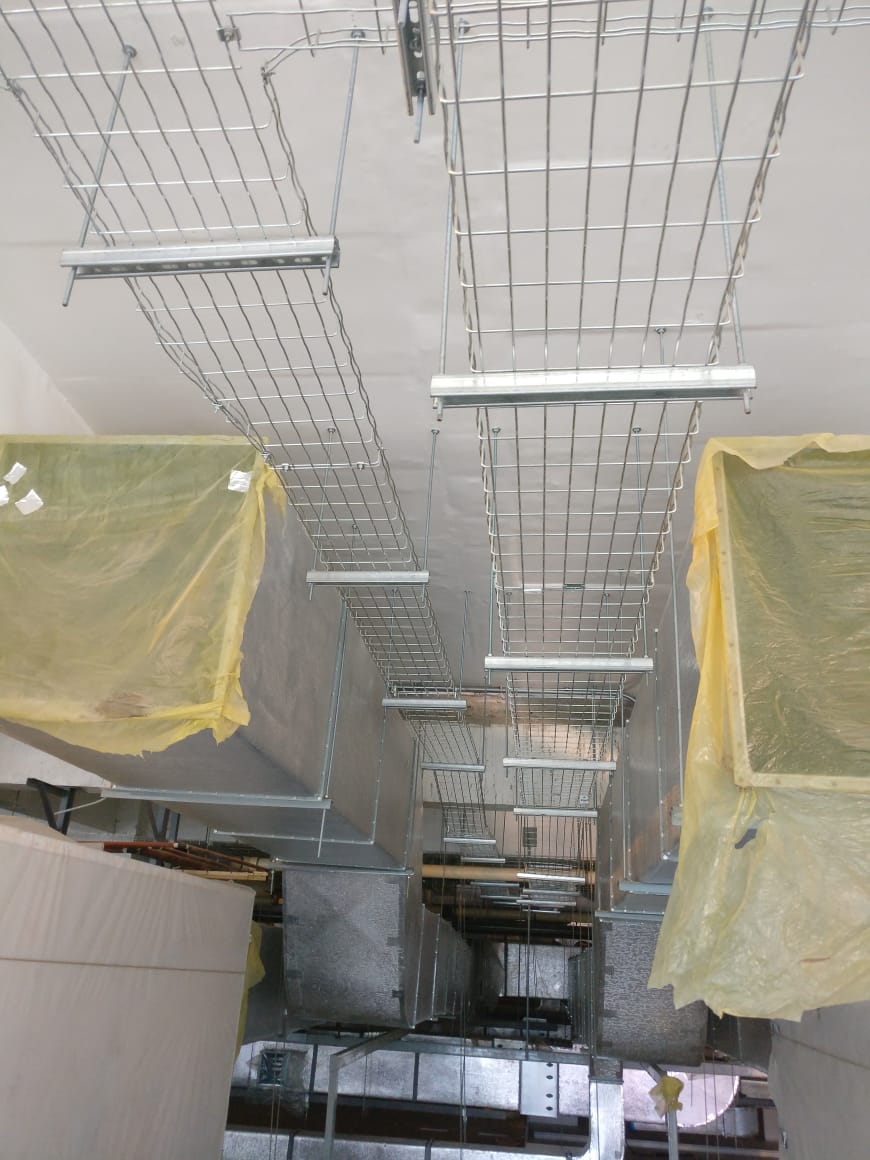

Bends, tees, risers and drops are cut and shaped from straight lengths with a hand tool, using the same three accessories throughout. These are trays we have supplied into raised floors, plant rooms, production halls and outdoor plant.
Applications
Engineering-led approach
We help you select the right tray type, material, and support system for your site conditions, not just supply a catalogue item.
Complete system supply
Trays, accessories, supports, and underground protection from a single partner.
Focus on wire mesh technology
Our core cable management expertise is in wire mesh tray systems, giving customers faster, safer, lower-cost installation.
End-to-end support
From product selection through installation guidance and after-sales assistance, with reliable sourcing and logistics.
Planning a cable routing project?
Talk to our team for a tray and accessory recommendation suited to your site, load, and environment.
